Glass Cutting

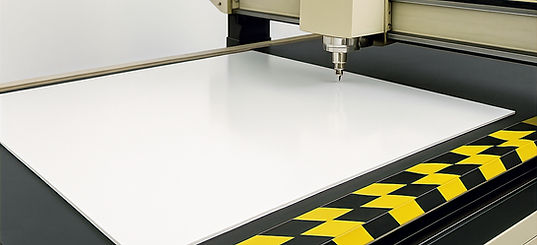

Diamond wheel cutting is the most commonly used method for cutting glass in high-volume manufacturing. It combines speed, cost-effectiveness, and shape flexibility, making it ideal for general-purpose and large-scale production. Although it requires secondary edge finishing, it delivers an excellent balance between efficiency and precision for flat glass sheets.

Our CNC diamond wheel cutting process typically achieves a surface roughness (Ra) of 0.8 – 1.6 μm, minimizing the need for extensive edge grinding.

​

• Maximum Size: 3660 × 2440 mm

• Thickness Range: 0.7 – 15 mm

• Tolerance: < 0.1 mm

• Equipment: Fully Automated Diamond Glass Cutting Line

• Best For: Large-format glass panels, display glass, and standard geometries

• Benefits: Fast processing speed, low cost per cut, suitable for mass production

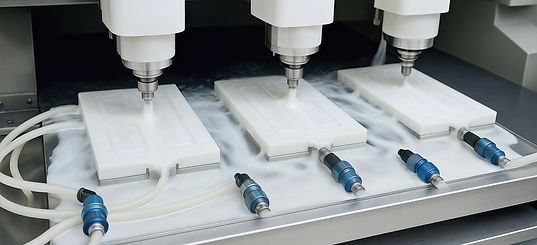

Waterjet cutting uses a high-pressure stream of water, often mixed with abrasive particles, to precisely cut through glass without generating heat. This cold cutting method prevents thermal stress and micro-cracks, making it suitable for thick glass, heat-sensitive materials, and complex shapes. It offers minimal kerf width and excellent design flexibility.

• Maximum Size: 3660 × 2440 mm

• Thickness Range: 0.7 – 15 mm

• Tolerance: < 0.1 mm

• Equipment: High-Precision CNC Waterjet Cutting System

• Best For: Thick glass, irregular designs, custom components

• Benefits: Cold cutting, high edge quality, ideal for heat-sensitive applications

Laser glass cutting delivers exceptional accuracy and smooth edges through a non-contact, heat-based process. Using a focused laser beam, this advanced technique is perfect for intricate geometries, micro-components, and applications requiring tight tolerances. Laser cutting ensures clean cuts with minimal mechanical stress on the glass surface.

• Tolerance: ±0.001 mm

• Thickness Range: 0.23 – 10 mm

• Equipment: State-of-the-Art Industrial Laser Cutting Machine

• Best For: Fine features, micro holes, display cutouts, optical components

• Benefits: Ultra-precise edges, no physical pressure, suitable for fragile or small-scale parts

We offer manual and specialty glass cutting services including tube and rod cutting, scribe cutting, and hand cutting, ideal for low-volume production, prototyping, and non-standard geometries. Our tube and rod cutting ensures clean, accurate separation of cylindrical glass used in scientific, medical, and lighting applications. Scribe cutting provides efficient straight-line scoring for cost-effective sheet processing, while hand cutting allows for irregular shapes and custom freeform designs with artisan precision.
